How to deploy the vCenter Server 6 Appliance with an Embedded Platform Services Controller?

By | March 14, 2015

This post covers how to deploy the vCenter Server Appliance with an Embedded Platform Services Controller. Why Appliance? Because as I mentioned here, the vCenter appliance is the future! Fortunately, it was released a tool which you can use to migrate vCenter from Windows Machine to the Appliance. For more information please follow my another post here.

There are some posts about vCenter 6.0 and Platform Services Controllers as follow:

vCenter Server 6 Appliance Prerequisites

  • Verify that your system meets the minimum software and hardware requirements: ESXi 5.1.x or later; depends on size of infrastructure: 2-32GB RAM, 2-16vCPU, 120GB-450GB available space on datastore).
  • Verify that the ESXi host on which you deploy the vCenter Server Appliance is not in lockdown or maintenance mode.
  • If you plan to use NTP servers for time synchronization, make sure that the time between the NTP servers and the ESXi host is synchronized.
  • Create a DNS record for vCenter Appliance before starting steps 4-20.



To deploy  the vCenter Server Appliance with an Embedded Platform Services Controller please follow steps:

  1. Download the vCenter Server Appliance installer (.ISO) from the VMware Web site at https://my.vmware.com/web/vmware/downloads.How to deploy the vCenter Server Appliance 6 with an Embedded Platform Services Controller - download
  2. Mount the ISO image to the Windows virtual machine or physical server on which you want to install the Client Integration Plug-In to deploy or upgrade the vCenter Server Appliance.
  3. In the software installer directory, navigate to the vcsa directory and double-click VMware-ClientIntegrationPlugin-6.0.0.exe to install the plugin.How to deploy the vCenter Server Appliance with an Embedded Platform Services Controller?
  4. In the software installer directory, double-click vcsa-setup.html.
  5. Wait up to three seconds for the browser to detect the Client Integration Plug-in and allow the plug-in to run on the browser when prompted.
  6. On the Home page, click Install to start the vCenter Server Appliance deployment wizard.How to deploy the vCenter Server Appliance 6 with an Embedded Platform Services Controller - web
  7. Read and accept the license agreement, and click Next.How to deploy the vCenter Server Appliance 6 with an Embedded Platform Services Controller - 3
  8. Connect to the target ESXi host on which you want to deploy the vCenter Server Appliance and click Next.How to deploy the vCenter Server Appliance 6 with an Embedded Platform Services Controller - 4
  9. Accept the certificate warning, if any, by clicking Yes.How to deploy the vCenter Server Appliance 6 with an Embedded Platform Services Controller - 5
  10. On the Setup virtual machine page, enter the vCenter Server Appliance name, set the password for the root user, and click Next.How to deploy the vCenter Server Appliance 6 with an Embedded Platform Services Controller - 6

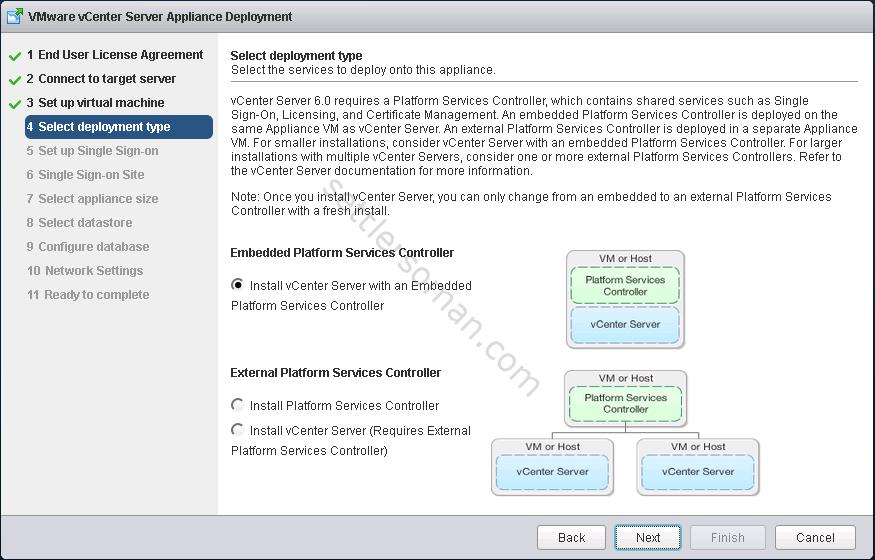

  11. In the Select deployment type page, select Install vCenter Server with an embedded Platform Services Controller and click Next.How to deploy the vCenter Server Appliance 6 with an Embedded Platform Services Controller - 7
  12. Create a new vCenter Single Sign-On domain or join an existing domain. I create a new SSO domain so I typed my SSO Domain name as "nihonno.domein".How to deploy the vCenter Server Appliance 6 with an Embedded Platform Services Controller - 8
  13. Click Next.
  14. In the Select appliance size page of the wizard, select the vCenter Server Appliance size for your vSphere inventory, and click Next.How to deploy the vCenter Server Appliance 6 with an Embedded Platform Services Controller - 9
  15. From the list of available datastores, select the location where all the virtual machine configuration files and virtual disks will be stored and, optionally, enable thin provisioning by selecting Enable Thin Disk Mode.How to deploy the vCenter Server Appliance 6 with an Embedded Platform Services Controller - 10
  16. Select the type of database that you want to use and click Next.How to deploy the vCenter Server Appliance 6 with an Embedded Platform Services Controller - 11
  17. On the Network Settings page, set up the network settings. Configure the time settings in the appliance, optionally select Enable SSH to secure the connection, and click Next.How to deploy the vCenter Server Appliance 6 with an Embedded Platform Services Controller - 12
  18. In the Ready to complete page, review the deployment settings for the vCenter Server Appliance, and click Finish to complete the deployment process.How to deploy the vCenter Server Appliance 6 with an Embedded Platform Services Controller - 13
  19. After the deployment completes, click the https://vcenter_server_appliance_IP_address/vsphere-client link to start the vSphere Web Client and log in to the vCenter Server instance in the vCenter Server Appliance.
  20. Click Close to exit the wizard.



Note: If you use the embedded VMware Postgres database with vCenter Server 6.0 and you uninstall vCenter Server, the uninstallation process removes the embedded database. More information available here.

10 thoughts on “How to deploy the vCenter Server 6 Appliance with an Embedded Platform Services Controller?

  1. DANic

    I have error after step 9
    An exception occurred.Restart the browser and try again.

    I try it in Chome and IE11

    Reply
      1. Mariusz Post author

        Hi,

        what can you find in the logs located : %USERPROFILE%\AppData\Roaming\VMware\vSphere\vcsa ?

        Reply
  2. DANic

    %USERPROFILE%\AppData\Local\VMware\CIP\csd\logs\csd_0000.log

    [2015-03-23 12:35:27] [INFO] Command Line: C:\Program Files (x86)\VMware\Client Integration Plug-in 6.0\vmware-csd.exe, --protocol, vmware-csd://csd/?sessionId=FNun-yeZv-Aynk-rzNz&appName=vcsaInstaller
    [2015-03-23 12:35:27] [INFO] Service Dir: C:\Program Files (x86)\VMware\Client Integration Plug-in 6.0
    [2015-03-23 12:35:27] [INFO] Protocol Url: vmware-csd://csd/?sessionId=FNun-yeZv-Aynk-rzNz&appName=vcsaInstaller

    %USERPROFILE%\AppData\Local\VMware\CIP\vcsaInstaller\sessions\session_0000\logs\csd.log
    csd.log on pastebin

    Reply
  3. DANic

    I found reporrt about error 'fileTransfer.exe'
    fileTransfer.exe
    0.0.0.0
    54d14635
    libcurl.dll
    0.0.0.0
    4fb54a82
    c0000409
    0004243b
    fc4
    01d06533b4404334
    C:\Program Files (x86)\VMware\Client Integration Plug-in 6.0\fileTransfer.exe
    C:\Program Files (x86)\VMware\Client Integration Plug-in 6.0\libcurl.dll

    But, don't know what can i do with that

    Reply
    1. Mariusz Post author

      Have you tried to reinstall the Client Integration Plug-in?

      Reply
      1. DANic

        Yes, but it hasn't helped, there is a trouble with Windows 8.1x64 (may be it's just a problem with my winx64).
        I solved a problem of installation guest Win7x64 on workstation and deployment of it.

        Reply
  4. Jumo

    Hi,

    Sorry, this is another topic - how can I log in to https://server-name../psc/ ? (vCenter & Platform Services Controller are on the same machine after upgrading from 5.5 U3 to 6.0 U2)
    I get a 404 error message:
    message /psc/
    description The requested resource is not available.
    All services are running.

    Thanks.

    Reply
    1. Mariusz Post author

      Hi,

      you should able to log in to via /psc using SSO Administrator account. If you get 404 error, it looks like an upgrade hasn't been done successfully.

      Reply
  5. Shailesh Kumar

    Hi,

    During the deployment of the VCSA appliance 6.0 you get the following error messages displayed:
    • Failed to set the time via NTP. Details: Internal Error. Code 1
    • Failed to set hostname.
    • Verify that provided ntp servers are valid.

    Reply
